CELL-DYN Emerald 22 AL Hematology Analyzer

Turn Small Places into Smart Spaces
Request information
Play video
CELL-DYN banner image
CELL-DYN banner image
CELL-DYN banner image
Simply smart

With reduced budgets, shrinking laboratory space and staffing challenges, many laboratories need a solution that lets them work smarter with less.

The CELL-DYN Emerald 22 AL is a full performance, automated optical 5-part differential analyzer that delivers smarter results for small to mid-size clinical laboratories.

For in vitro diagnostic use.

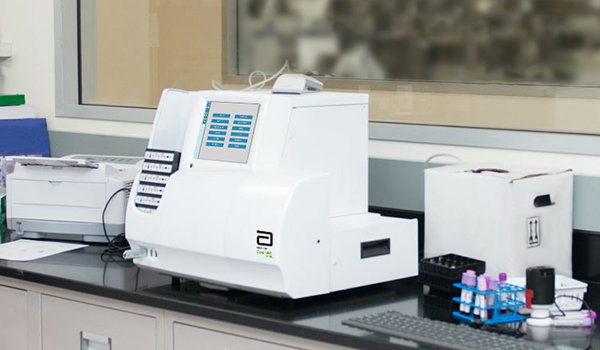

Compact design

Conserve valuable laboratory space with a small footprint and only 2 reagents, plus onboard cleaner.

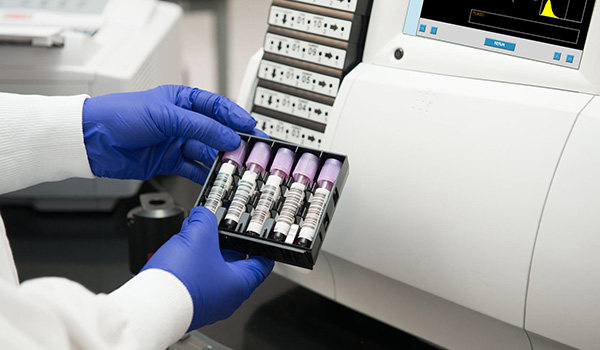

Walkaway functionality

Optimize hematology workflow with 50 tube load-up capacity.

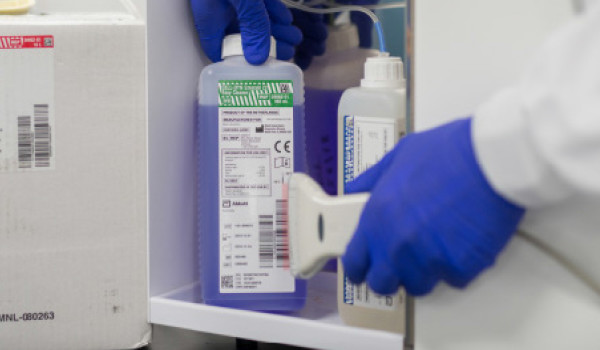

Ease of use
  • Reduce hands-on time with touch-free scheduled daily maintenance, startup and shutdown
  • Decrease manual entry errors and help to comply by use of barcoded reagents

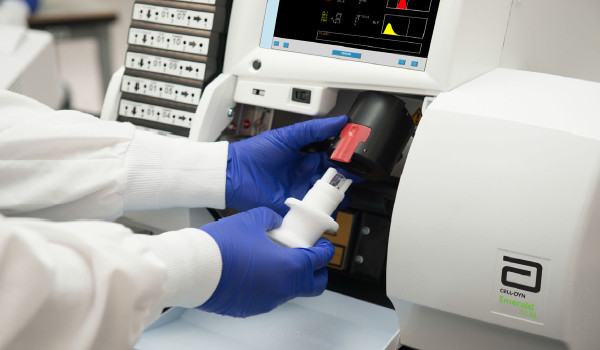

Smart safety features
  • Ensure user safety with a specially developed open tube sample device
  • Prevent errors with optional tube bypass for specimens with unreadable barcodes

System Specifications

SpecificationsDescriptionS
Technology & Methods
  • Optical Flow Cytometry technology
  • Electrical impedance
  • Absorption spectrophotometry
  • Electronic valves
  • Cyanide-free lyse reagent
  • LCD color touch screen
  • RS232 and TCP/IP LIS interface
  • Multiple USB ports (3 in front, 1 in back)
Throughput40 samples per hour
Autoloader Capacity50 tubes (up to 10 racks, 5 tubes per rack)
Sample Size21 μL
Specimen Data Management
  • Search by date or sequence number
  • Flagging for patient limit sets
  • Flagging for panic values
  • 3,000 records with histograms on internal memory
  • Up to 300,000 records on external USB thumb drive
  • Customizable patient limits and report units (USA, SI, SI MOD)
  • Barcode reader (reads code 128, code 39, interleaved 2 of 5, and others listed in the Operator’s Manual)
Quality Control
  • 12 control files
  • 100 records per file
  • Levey-Jennings graphs
  • Upload/download control information
  • eQC online peer review program
Demographics
  • Sequence number
  • Alphanumeric specimen ID
  • Date & time analyzed
  • Patient name
  • CBC with or without 5-part differential
  • Flagging and Alerts
Dispersional Data Alert
  • Operator-defined patient limits for low, high, ad panic values
  • System-defined limits for reportable range and analytical measurement range
  • Suspect parameter flags caused by interfering substances or sample abnormalities
  • Suspect parameter flags generated when WBC data indicates possible presence of an abnormal population
Standards & Safety Compliance
  • CAN/CSA-C22.2 No. 61010-1
  • IEC 61010-1
  • IEC 61010-2-101
  • IEC 61326-1
  • IEC 61326-2-6
  • IEC 60825-1
  • CE Mark
Peripheral Devices
  • Inkjet or laser printer
  • USB Thumb Drive
  • Handheld barcode scanner
  • Keyboard
Physical Dimensions
  • Height - 16.1 inches (41 cm)
  • Width - 19.7 inches (50 cm)
  • Depth - 17.0 inches (43 cm)
  • Weight - approximately 55 lbs. (25 kg) (without on-board reagents)

Parameters

White CellSRED CELLSPlatelets
WBCRBCPLT
NEU %HGBMPV
NEU #HCT
LYM %MCV
LYM #MCH
MON %MCHC
MON # RDW
EOS %
EOS #
BAS %
BAS #

Reagents

Reagent DescriptionsSize and List Number
CELL-DYN Emerald 22 Lyse500 mL (List No. 09H61-01)
CELL-DYN Emerald 22 Diluent10 L (List No. 09H62-01)
CELL-DYN Emerald 22 Easy Cleaner980 mL (List No. 09H60-01)

Controls & Calibrators

SpecificationsDescriptionS
CELL-DYN 22 Plus Calibrator09H73-01
CELL-DYN 22 Plus Control Full-Pack (12 tubes)09H72-01
CELL-DYN 22 Plus Control Half-Pack (6 tubes)09H72-02

Racks

Descriptions - AccessoriesList Number
Emerald 22 AL Type 1 Racks (1-10) Standard tubes04T53-01
Emerald 22 AL Type 1 Racks (11-20) Standard tubes04T54-01
Emerald 22 AL Type 1 Racks (21-30) Standard tubes04T55-01
Emerald 22 AL Type 2 Racks (1-10) Sarstedt tubes04W22-01
Emerald 22 AL Type 2 Racks (11-20) Sarstedt tubes04W23-01
Emerald 22 AL Type 2 Racks (21-30) Sarstedt tubes04W24-01

Login or register for a new account on the Lab Central customer portal.

Here you can refer to the Operations Manual or Users Guide for warnings, precautions, and limitations for proper use of the instrument.

Visit Lab Central
