CELL-DYN Emerald Hematology Analyzer

Fast, easy, with accurate results every time
CELL-DYN banner image
CELL-DYN banner image
CELL-DYN banner image
A hematology instrument that’s quick and efficient

As a laboratory professional in a small hospital or clinic laboratory, your need for greater efficiency and productivity—done quickly under tighter space limitations—is more important than ever.

CELL-DYN Emerald provides you with proven methods and technology, including electronic impedance, absorption spectrophotometry, electronic valves, cyanide-free lyse reagent, LCD color touch screen and USB ports.

For in vitro diagnostic use only.

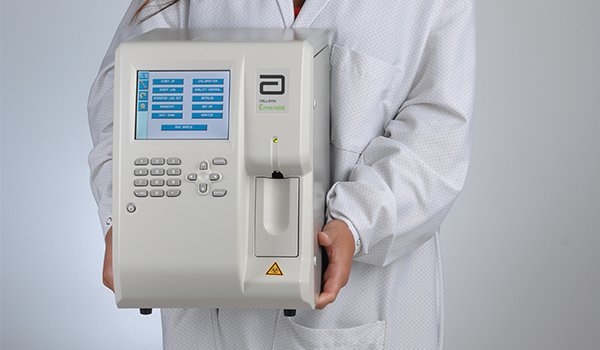

Compact, light and powerful

At just 25 cm (W) x 35 cm (H) x 35 cm (D), CELL-DYN Emerald’s small size, simple touch screen software and reliability offer an easy-to-use, truly compact table/bench top instrument for easy performance in your laboratory.

High performance and affordability

CELL-DYN Emerald analyzer offers high performance in an affordable, compact design that provides reliable and accurate patient results every time. As a smaller operating laboratory, you need a solution that offers big results. CELL-DYN Emerald provides results in under 65 seconds.

Simple and low-cost operation

CELL-DYN Emerald’s small size means fewer parts, reduced maintenance interval and time, and an increased uptime, while the analyzer functionality is ready to use with minimal operator involvement. Startup and shutdown is automated. No daily or weekly maintenance is required, giving you more time to focus on other important laboratory functions.

Secured for consistent results

User and supervisor login levels help protect and prevent unwanted changes of set functions or settings that could impact consistency of results.

System Specifications

Technology & Methods
  • Electronic impedance
  • Absorption spectrophotometry
  • Electronic valves • Cyanide-free lyse reagent
  • LCD color touch screen
  • RS232 and TCP/IP LIS interface
  • USB ports
ThroughputUp to 57 samples per hour
Sample Size~9.8 μL
Specimen Data Management
  • Search by date or sequence number
  • Flagging for patient limit sets
  • Flagging for panic values
  • 1,500 records with histograms on internal memory
  • Up to 300,000 records on external USB thumb drive
  • Customizable patient limits
  • Customizable report units (US, SI, SI MOD)
  • Barcode reader (reads code 128, code 39, interleaved 2 of 5, and others listed in the Operator’s Manual)
Quality Control
  • 6 control files
  • 100 runs per file
  • Levey-Jennings graphs
  • Upload/download control information
  • eQC online peer review program
  • Sequence number
  • Alphanumeric specimen ID
  • Alphanumeric patient ID
  • Date & time analyzed
  • Patient name
  • CBC with 3-part differential
  • Flagging and Alerts
Dispersional Data Alert
  • Operator-defined patient limits for high and panic values
  • System-defined limits for reportable range and analytical measurement range
  • Suspect parameter flags caused by interfering substances or sample abnormalities
  • Suspect parameter flags generated when WBC data indicates possible presence of an abnormal population
Standards & Safety Compliance
  • IEC 61010-1
  • CAN/CSA-C22.2 No. 61010-1
  • IEC 61010-1
  • IEC-61010-2-101
  • IEC 61326-1
  • IEC 61326-2-6
  • CE Mark
Peripheral Devices
  • Inkjet or laser printer
  • USB Thumb Drive
  • Handheld barcode scanner
Physical Dimensions
  • Height - 13.8 inches (35 cm)
  • Width - 9.8 inches (25 cm)
  • Depth - 13.8 inches (35 cm)
  • Weight - 19.8 lbs. (9 kg) (without on-board reagents)


White cellsred cellsPlatelets

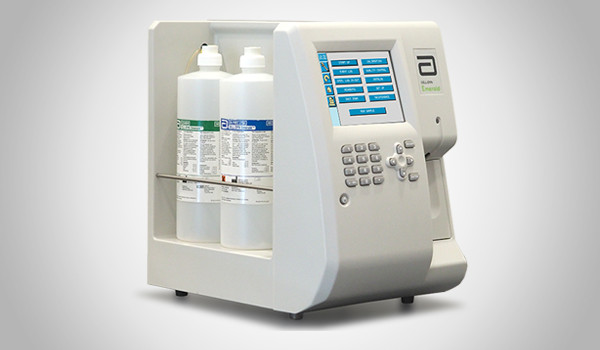

Reagent DescriptionsSize and List Number
CELL-DYN Emerald CN-Free Lyse Reagent960 mL (List No. 09H47-02)
CELL-DYN Emerald Diluent Reagent10 L (List No. 09H48-02)
CELL-DYN Emerald Cleaner Reagent960 mL (List No. 09H46-02)

Controls & Calibrators

SpecificationsList Number
CELL-DYN 18 Plus Calibrator09H70-01
CELL-DYN 18 Plus Control
  • 09H69-01 (12 x 2.5 mL tubes)
  • 09H69-02 (6 x 2.5 mL tubes)

Hematology Academy
Personalized and relevant educational resources to help keep you informed of the latest hematology laboratory topics, including clinical approaches and technologies. We offer a wide range of courses, case studies, how-to videos and webinars tailored to deliver a unique educational experience..

Refer to the operations manual or user guide for warnings, precautions and limitations for proper use of the instrument.
