Architect c16000

Pink background img
Pink background img
Pink background img

High volume

High productivity

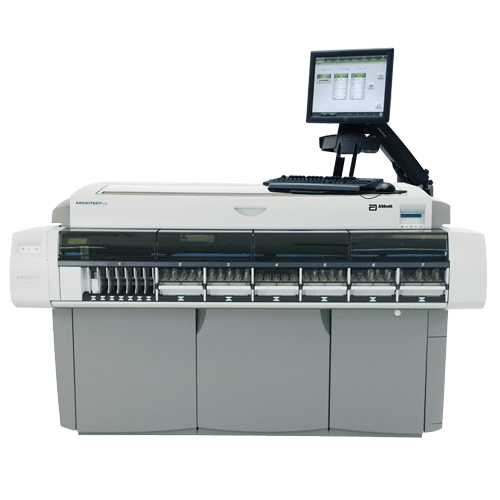

Imagine being able to count on high quality results — not only in the first run, but in every run thereafter. That's what you can expect with the ARCHITECT c16000 clinical chemistry analyzer. The ARCHITECT c16000 offers high throughput to handle heavy workloads with heavy workloads and confidence in all your results.

The ARCHITECT c16000 offers a maximum throughput of up to 1,800 tests per hour. Featuring a load-up capacity of 215 samples with 35 priority positions, the ARCHITECT c16000 has up to 130 refrigerated reagent positions plus Integrated Chip Technology (Na+, K+ and Cl-).

For in vitro diagnostic use only.

Refer to the operations manual or user guide for warnings, precautions and limitations for proper use of the instrument.
Register or login to your account to view assay specific package inserts for intended use and important safety information.
Some assays may not be available on all platforms.

System specifications

 Description

Methods

Photometric, Potentiometric, Turbidimetric

Maximum Throughput

Up to 1,800 tests/hour

Sample Types

Serum, Plasma, Urine, CSF

Sample Tubes

Height: 72-102 mm

Diameter: 9.6-16.1 mm

Sample Cup

Yes (50 µL dead volume)

Sample Capacity

215

Sample Barcode Types

Code 39, Codabar, Interleaved 2 of 5, Code 128

Sample Result Storage

50,000

Sample Volume

1.5-35 µL, Average: 7.2 µL

Automatic Dilution

Yes

Sample Probe Carryover

≤0.1 parts per million

Reagent Capacity

Up to 130 refrigerated positions plus patented ISE (Na+, K+ and Cl-)

Reagent Type

>97% liquid ready-to-use

Reagent Onboard Stability

5-65 days, Average: 38 days

Calibration Frequency

1-60 days, Average: 25 days

Sample, Clot and Bubble Detection

Yes

Reagent Pressure Monitoring

Yes

Sample Interference Measurement

 Yes: Hemolysis, Icterus and Lipemia

System Control Center

1 SCC, with color touchscreen monitor, keyboard and mouse

Onboard Maintenance Records

Yes

Online Error Code Help

 Yes

Host Interface

Bidirectional, serial RS-232 interface, host query option available

Remote Diagnostics

AbbottLink

Dimensions
(H x W x D)

48" x 79" x 49"

121.9 x 200.6 x 124.5 cm

Weight

1,545 lbs

701 kg

Electrical Requirements

AC 180-264V, 47-63 Hz, 20 amp

Water Requirements

Deionized water ≤54 liters/hour during normal operation

Heat Output*

4730 BTU/hr, running mode

Sample Loading

RSH + Carousel

*Values provided represent the typical output in “Running” mode for the system processing module and sample handler. A maximum value of 389 BTU/hr was obtained for the System Control Center (SCC) using the ARCHITECT i2000SR as a representative system. Values obtained during an internal study. Data is on file with Abbott.

Documentation

Review a few details about the ARCHITECT c16000 clinical chemistry analyzer in the specifications sheet (PDF, 118 KB).

Download the spec sheet
