Alinity h-series integrated hematology system

SIMPLICITY BUILT IN. STREAMLINED FOR YOUR LABORATORY.

Alinity h-series integrated hematology system image
Alinity h-series integrated hematology system image
Alinity h-series integrated hematology system image

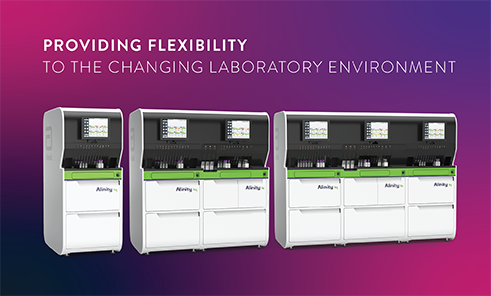

Achieve integration that is built on user-focused design

With an emphasis on addressing needs articulated by you, the Alinity h-series was designed for future integration of multiple modules, all controlled by a single system control center. It also offers an intuitive and uniform experience, aligned with other Alinity solutions. This commonality in user experience across multiple laboratory disciplines allows for efficiencies in training, operation, and utilization of staff.

Flexibility & capacity to adapt

Laboratory service providers like you are facing considerable uncertainty in the healthcare environment, due to an aging population, proliferation of chronic diseases, and performance pressures such as consolidation and managing costs. The Alinity h-series is part of a holistic family of personalized solutions from Abbott. The Alinity family of harmonized systems is designed to build greater capacity, flexibility, and confidence to help you manage unpredictability, both today, and into the future.

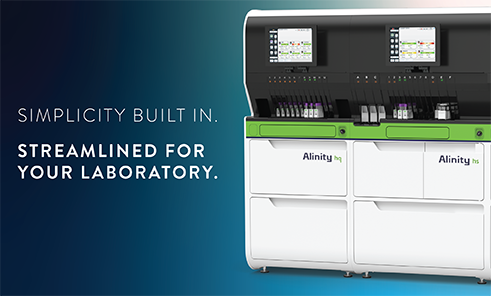

Hematology systems that streamline workflow to transform your laboratory

The Alinity h-series of systems integrates hematology workflow, from high-throughput Complete Blood Count (CBC) analysis to automated slide making and staining. With a bi-directional, internal conveyor and a throughput of 125 CBCs per m2, it delivers high performance in one of the most compact footprints available.

Simplified workflow backed by innovative design

The Alinity hq analyzer delivers a Complete Blood Count (CBC) with a 6-part White Blood Cell (WBC) differential and several parameters using Advanced MAPSS™ (Multi Angle Polarized Scatter Separation) technology. The design incorporates additional angular intervals of light scatter to improve differentiation of the WBC, Red Blood Cells (RBC) and platelets as they pass through the detection area of the optical flow cell.

Together with the use of multi-paradigm numerical computer tools, a machine-learning cell classifier, a Gaussian Mixture Model (GMM) and Graph Adaptive Clustering (GAC), the Alinity hq technology represents an advancement in cellular analysis for hematology.

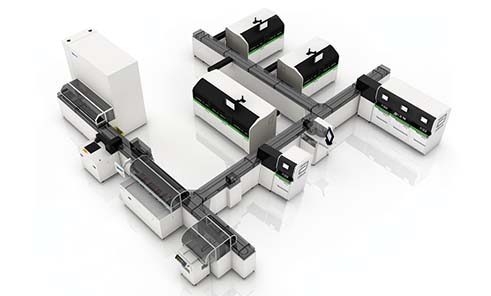

Maximize hematology efficiency with laboratory automation

The Alinity h-series also interfaces with the ACCELERATOR a3600 system.

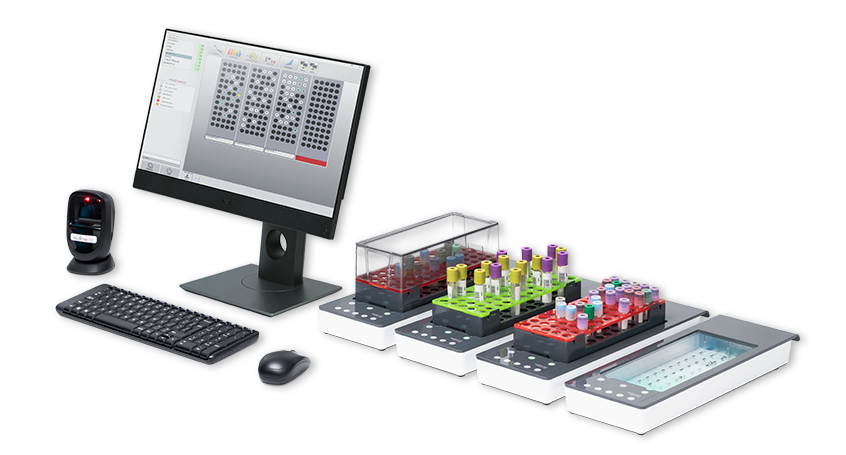

The flexibility of the Alinity h-series allows simultaneous sample loading on the analyzer and the automation track. It utilizes smart-sensing technology that intelligently prioritizes STAT samples, shortening wait times.

Adding to the seamless integration with these automation solutions, our AlinIQ middleware solution enables your laboratory to gain further operational efficiency, reducing manual work and enabling your staff to focus on critical tasks.

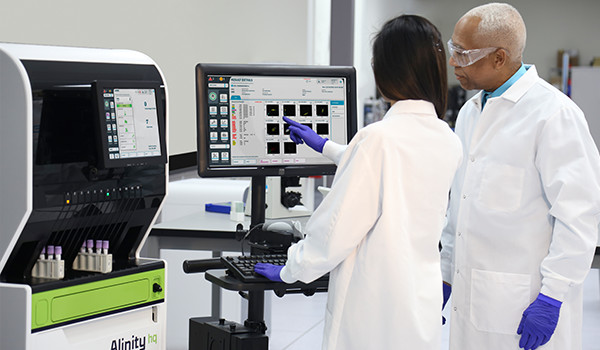

Deliver performance that comes from proven expertise in system and assay design

Alinity h-series is designed to deliver reliable results needed by the busy hematology laboratory and is anchored on user feedback to ensure that the laboratory operates efficiently.

Leveraging Abbott's legacy of experience in optics and reagent development, the Alinity hq analyzer uses only three reagents to deliver a CBC with 6-part differential.

Auburn Community Hospital Transforming hematology workflow in the US

Auburn Community Hospital (ACH) in central New York is thrilled to be the FIRST institution in the United States to debut Abbott’s Alinity h-series within their core laboratory.

North west london pathology (nwlp)
The Transformation Journey: The vision for Change

Saghar Missaghian-Cully, Managing Director at NWLP, shares her vision for change and why undergoing transformation to a harmonized family of laboratory systems has enabled NWLP to deliver integrated care.

North west london pathology (nwlp)
The Transformation Journey: Delivering Value

Matthew Kent, Blood Sciences Manager at Charing Cross Hospital and Daniel Pelling, Blood Sciences Manager at St. Mary's Hospital discuss hematology operational efficiencies realized through a uniformed and integrated core laboratory technology platform.

North west london pathology (nwlp)
The Transformation Journey: Path to the future

Northwest London Pathology, like many laboratories around the world is faced with shrinking laboratory space and staff shortages. Lorry Phelan, Deputy Divisional Manager, shares her vision of the future for hematology and how Abbott has helped her future-proof her laboratory.

Bioiatriki healthcare group
Transforming Hematology workflow for efficiency

See how Abbott's Alinity h-series helped Bioiatriki Healthcare Group in Greece improve efficiency, while addressing growing laboratory workload and increasing physician expectations.

FeatureAlinity hqAlinity hs
System Dimensions (HxDxW)149.9 cm (59 in) x 91.4 cm (36 in) x 66 cm (26 in)149.9 cm (59 in) x 91.4 cm (36 in) x 76.2 cm (30 in)
System Footprint0.6 m²0.7 m²
Weight250 kg (553 lbs)281 kg (620 lbs)
Maximum Throughput
  • 119/hr for CBC + Differential
  • 70/hr for CBC + Differential + Reticulocyte
65 stained smears per hour
(Based on default protocols)
Technology
  • WBC and Differential – Optical Scatter and Fluorescence
  • RBC – Optical Scatter and Fluorescence
  • Platelet – Optical Scatter
  • Reticulocytes – Optical Scatter and Fluorescence
Stain and smear, smear only and stain only. Custom Stain protocols can be created. The smear is performed by a single-use blade based on the hematocrit results provided by user, or determined by the integrated analyzer
Reportable ParametersWBC, 6-part Differential (NEU, %NEU, LYM, %LYM, MONO, %MONO, EOS, %EOS, BASO, %BASO, IG, %IG), RBC, HGB, HCT, MCV, MCH, MCHC, RDW, NRBC, NR/W, RETIC, %R, IRF, MCHr, PLT, MPV, %rPNot applicable
Reagents and ConsumablesReady to use: WBC Reagent, HGB Reagent, Retic Reagent, Diluent, Autoclean solutionReady to use: May-Grünwald-Giemsa stain or Wrights Giemsa Stain, Phosphate buffer, Smear Fix, Glass Slides, Slide Label Cartridge, Smear Tape Cartridge
Continuous Access of Reagents and ConsumablesYes
Flexible STAT OptionsYes. Any tube lane can be designated as a STAT lane
Sample Capacity120 tubes
    80 tubes, 210 blank slides, 120 stained/smeared slides
    Sample Aspiration Volume
    • CBC+ Diff: < 100 μl
    • CBC+ Diff + Retic: < 100 μl
    <25 μl
    Sample Result Storage100,000 Result Records, 100 Calibration Files, 1000 QC Files
    User Configurable RulesReflex and retest based on parameter limits, morphology flags, and delta checks
    LAS IntegrationYes, there are multiple track connectivity options available
