Architect ci4100

Pink background img
Pink background img
Pink background img

Smaller volume

High productivity

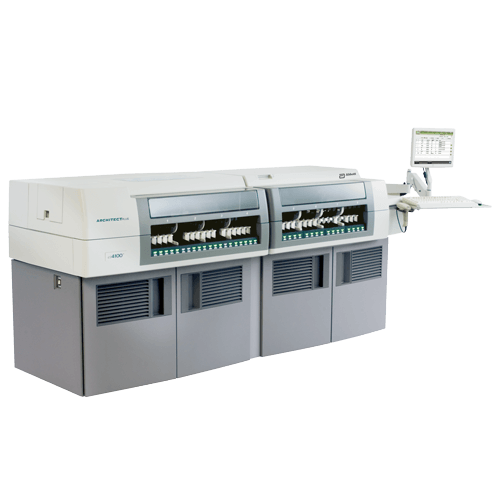

The ARCHITECT ci4100 combines ARCHITECT c4000 and ARCHITECT i1000SR instruments − offering lower volume laboratories the enhanced efficiency and productivity employed by larger volume laboratories.

The ARCHITECT ci4100 offers a maximum throughput of up to 900 tests per hour, including 800 clinical chemistry and 100 immunoassay tests. Featuring a load-up capacity of 180 samples with 35 priority positions, the ARCHITECT ci4100 has up to 115 refrigerated reagent positions plus Integrated Chip Technology (Na+, K+ and Cl-).

For in vitro diagnostic use only.

Refer to the operations manual or user guide for warnings, precautions and limitations for proper use of the instrument.
Register or login to your account to view assay specific package inserts for intended use and important safety information.
Some assays may not be available on all platforms.

System specifications

Description
MethodsSee c4000 and i1000SR specifications
Maximum ThroughputUp to 900 tests/hour
Sample TypesSee c4000 and i1000SR specifications
Sample TubesHeight: 72-102 mm
Diameter 9.6-16.1 mm
Sample CupYes (50 µL dead volume)
Sample Capacity180
Sample Barcode TypesCode 39, Codabar, Interleaved 2 of 5, Code 128
Sample Result Storage50,000
Sample VolumeSee c4000 and i1000SR specifications
Automatic DilutionYes
Sample Probe Carryover

≤0.1 parts per million

Reagent CapacityUp to 115 refrigerated positions plus patented ISE (Na+, K+ and Cl-)
Reagent TypeSee c4000 and i1000SR specifications
Reagent Onboard StabilitySee c4000 and i1000SR specifications
Calibration FrequencySee c4000 and i1000SR specifications
Sample, Clot, and Bubble DetectionYes
Reagent Pressure MonitoringSee c4000 and i1000SR specifications
Sample Interference MeasurementYes: Hemolysis, Icterus, and Lipemia
System Control Center 1 SCC, with color touchscreen monitor, keyboard and mouse
Onboard Maintenance RecordsYes
Online Error Code HelpYes
Host InterfaceBidirectional, serial RS-232 interface, host query option available
Remote Diagnostics AbbottLink
Dimensions
(H x W x D)

49” x 111” x 36”
125.1 x 281.2 x 90.7 cm

Weight1,677 lbs
760.7 kg
Electrical RequirementsSee c4000 and i1000SR specifications
Water RequirementsSee c4000 and i1000SR specifications
Heat Output*See c4000 and i1000SR specifications
Sample Loading RSH
*Values provided represent the typical output in “Running” mode for the system processing module and sample handler. A maximum value of 389 BTU/hr was obtained for the System Control Center (SCC) using the ARCHITECT i2000SR as a representative system. Values obtained during an internal study. Data is on file with Abbott.
 Note: Some of these specifications are based on the combination of the ARCHITECT c4000 and the ARCHITECT i1000SR. For accurate and complete specifications, please refer to the individual operations manual.
