Architect i1000SR

Architect i1000SR
Architect i1000SR
Architect i1000SR

High productivity

seamless consolidation

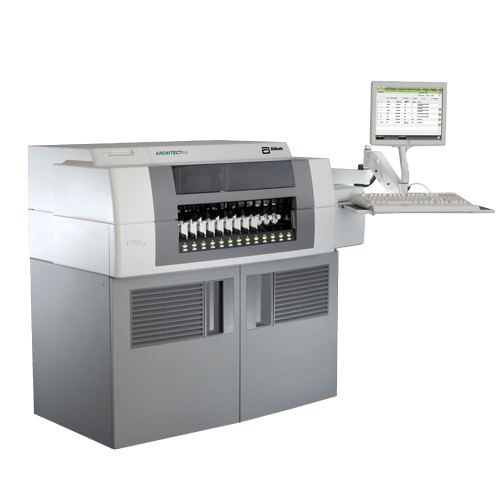

The ARCHITECT i1000SR immunoassay analyzer meets your laboratory’s high standards by delivering STAT results when you need them. The flexible protocols built into the ARCHITECT i1000SR enhance laboratory workflow and allow you to report results with confidence.

For in vitro diagnostic use only.

Refer to the operations manual or user guide for warnings, precautions and limitations for proper use of the instrument.
Register or login To your account to view assay specific package inserts for intended use and important safety information.
Some assays may not be available on all platforms.

SYSTEM SPECIFICATIONS

Description
MethodsCHEMIFLEX
Maximum ThroughputUp to 100 tests/hour
Sample TypesSerum, Plasma, Whole Blood, Urine
Sample Tubes

Height: 72-102 mm

Diameter: 9.6-16.1 mm

Sample CupYes (50 µl dead volume)
Sample Capacity65
Sample Barcode TypesCode 39, Codabar, Interleaved 2 of 5, Code 128
Sample Result Storage50,000
Sample Volume10-150 μL, Average: 62 µL
Automatic DilutionYes
Sample Probe Carryover≤0.1 parts per million
Reagent Capacity25 refrigerated positions
Reagent Type100% liquid ready-to-use
Reagent Onboard Stability14-30 days
Calibration FrequencyCalibrate with new lot number, if controls are out of range or if specified otherwise within the package insert
Sample, Clot and Bubble DetectionYes
Reagent Pressure MonitoringYes
Sample Interference MeasurementNo
System Control Center1 SCC, with color touchscreen monitor, keyboard and mouse
Onboard Maintenance RecordsYes
Online Error Code HelpYes
Host InterfaceBidirectional, serial RS-232 interface, host query option available
Remote DiagnosticsAbbottLink

Dimensions
(H x W x D)

49” x 59” x 30”

124.5 x 149.9 x 76.2 cm

Weight

636 lbs

288 kg

Electrical RequirementsAC 110-120V or 200-240V, ±10%, 50 or 60 Hz self-adjusting
Water RequirementsPurified water to dilute buffer concentrate
Heat Output*2400 BTU/hr, running mode
Sample LoadingRSH
*Values provided represent the typical output in “Running” mode for the system processing module and sample handler. A maximum value of 389 BTU/hr was obtained for the System Control Center (SCC) using the ARCHITECT i2000SR as a representative system. Values obtained during an internal study. Data is on file with Abbott.

Enhance your efficiency

The ARCHITECT i1000SR immunoassay analyzer allows integration with the ARCHITECT c4000 clinical chemistry analyzer to offer clinical chemistry and immunoassay testing in one platform.
